Floating Ceiling System
The noise from the equipment may hit the ceiling, causing solid structural sound and resonance. It is a system that effectively blocks and absorbs noise by spraying sound absorption mats or dark surfaces made of Fiber Glass on the ceiling.
Product Details
Explanation

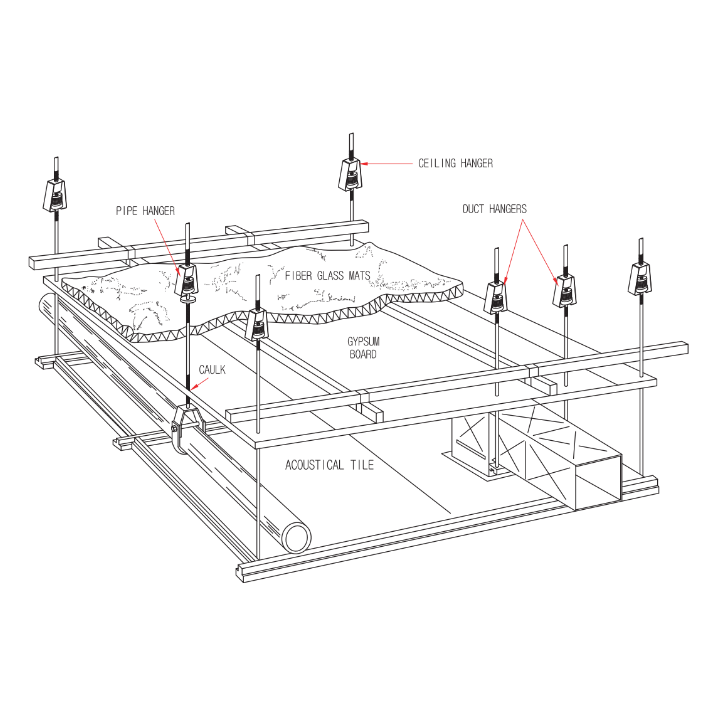

- The air layer between the ceiling and the isolated ceiling shall be at least 300 mm. In other words, in the case of isolated ceiling, it is much lighter than the surface density (kg/㎡) of the floating floor (FNM Plywood panel system) and the isolated wall system, so the effect of isolated ceilings should be improved by forming an air layer rather than the strength. However, install the spring hanger of KSB1561 or the UNSH that can absorb the vibration of a single ceiling or isolated ceiling as shown in the figure below. Alternatively, the spring hangers for pipes shall be isolated from noise and vibration by installing USHS and UNSHS which can adjust the weight at installation and at operation.
Detail Drawings of Isolated Wall System
