Dual Floor, Wall & Ceiling System
USJM High Efficiency of Jack-up Mount Floating Floor System
This product is intended to prevent noise from passing through existing reinforced concrete slabs in the air conditioning room and the machine room and from passing through important offices, conference rooms, and other specific areas. 50mm thick air layer and 100mm thick reinforced concrete slab are constructed to prevent the transmission loss of noise from the air conditioning room or the machine room to the maximum.
- Noise cut-off / Vibration cut-off / Shock cut-off
- Noise cut-off / Vibration cut-off / Shock cut-off
Product Details
Description
- If the area near the air conditioning room and the machine room is an important area such as an apartment, hospital room, operating room, and precision equipment, a high-efficiency jack-up system is constructed to prevent noise, vibration, and shock transmission.
- Effective against solid sound
- It has the most efficient deflection of 12mm among rubber products, showing an excellent effects.
- The system has excellent performance with a natural frequency of 4.5 Hz or less and a deflection of 15 mm. (Based on 500kg 1 type)
- It consists of an average 35 mm air layer and a 100 mm reinforced concrete slab.

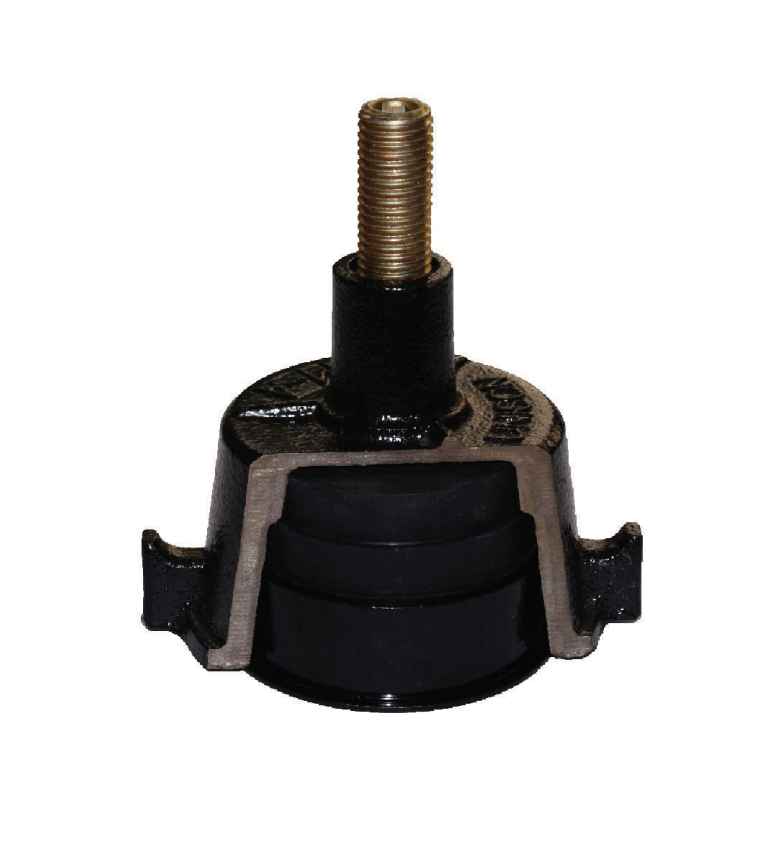

Composition
- Housing
- High Efficient Neoprene Mount
- Spring
- Lower-Cap
Product Usage
- For floating floor system in machine rooms and air conditioning rooms adjacent to important facilities
- For floating floor system in a broadcasting station air conditioning room
- For floating floor system in ultra-high-rise residential and commercial air conditioning rooms and machine rooms
- For floating floor system of performance halls, studios, etc
Comparison table by Floating Floor
USJM LOAD SELECTION GUIDE & DIMENSION
